Plate Heat Exchanger TSC 7150
Plate Heat Exchanger TSC 7150
Max Flow Rate: 933 m3/h (with water)
Plates Material: Stainless steel AISI 304 – AISI 316
Gaskets: NBR, EPDM, FKM
Energy Recovery: Up to 90%
Product Overview:

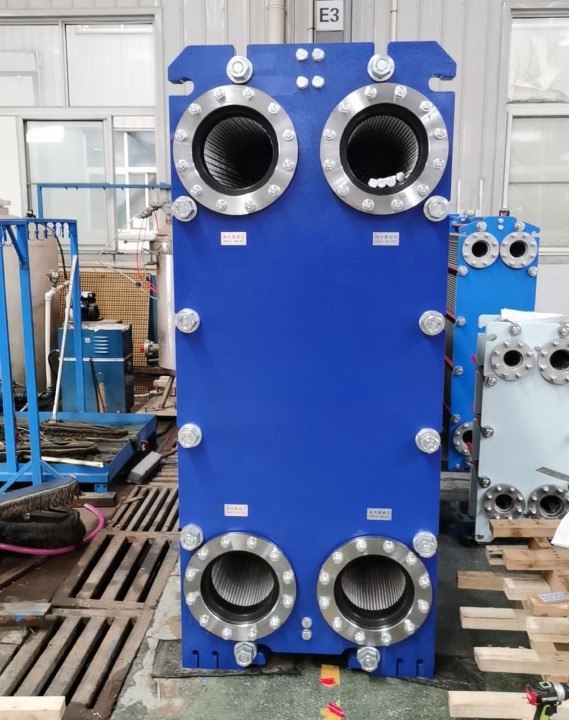

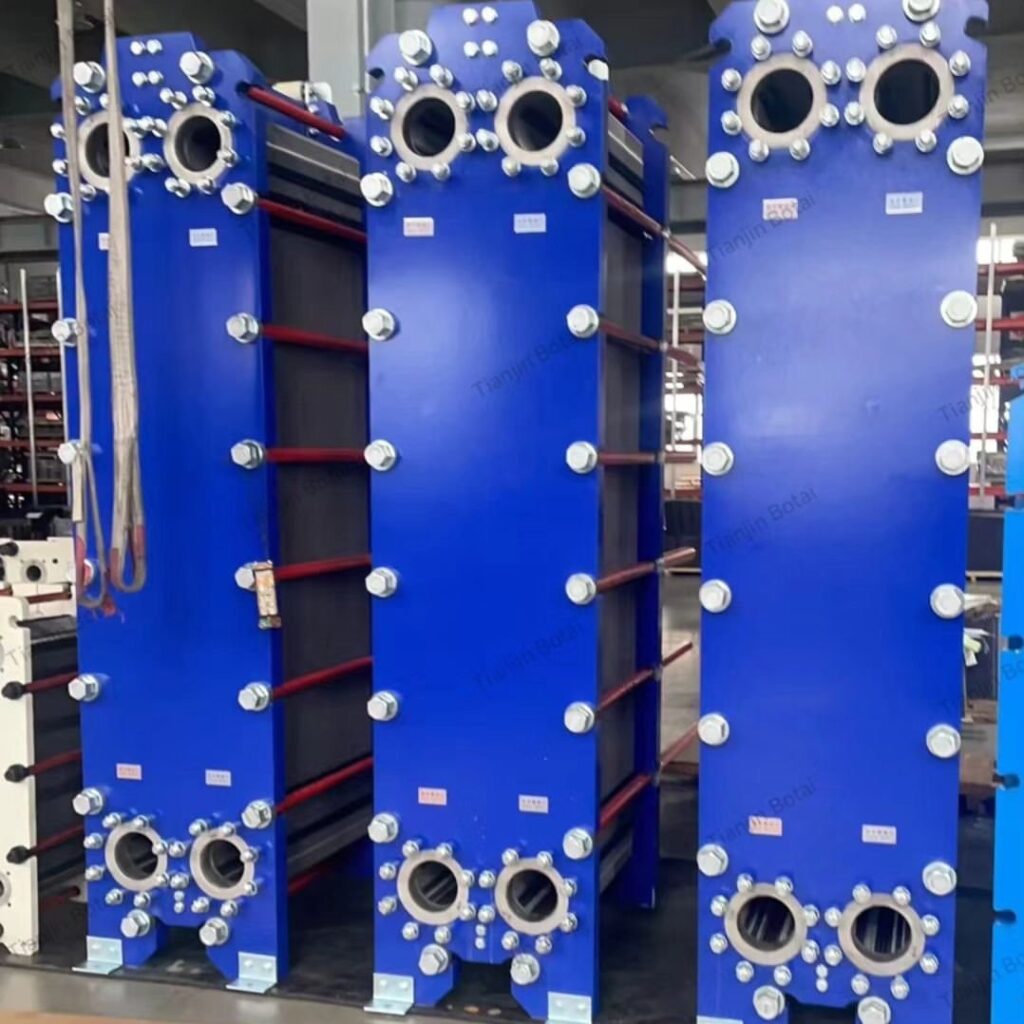

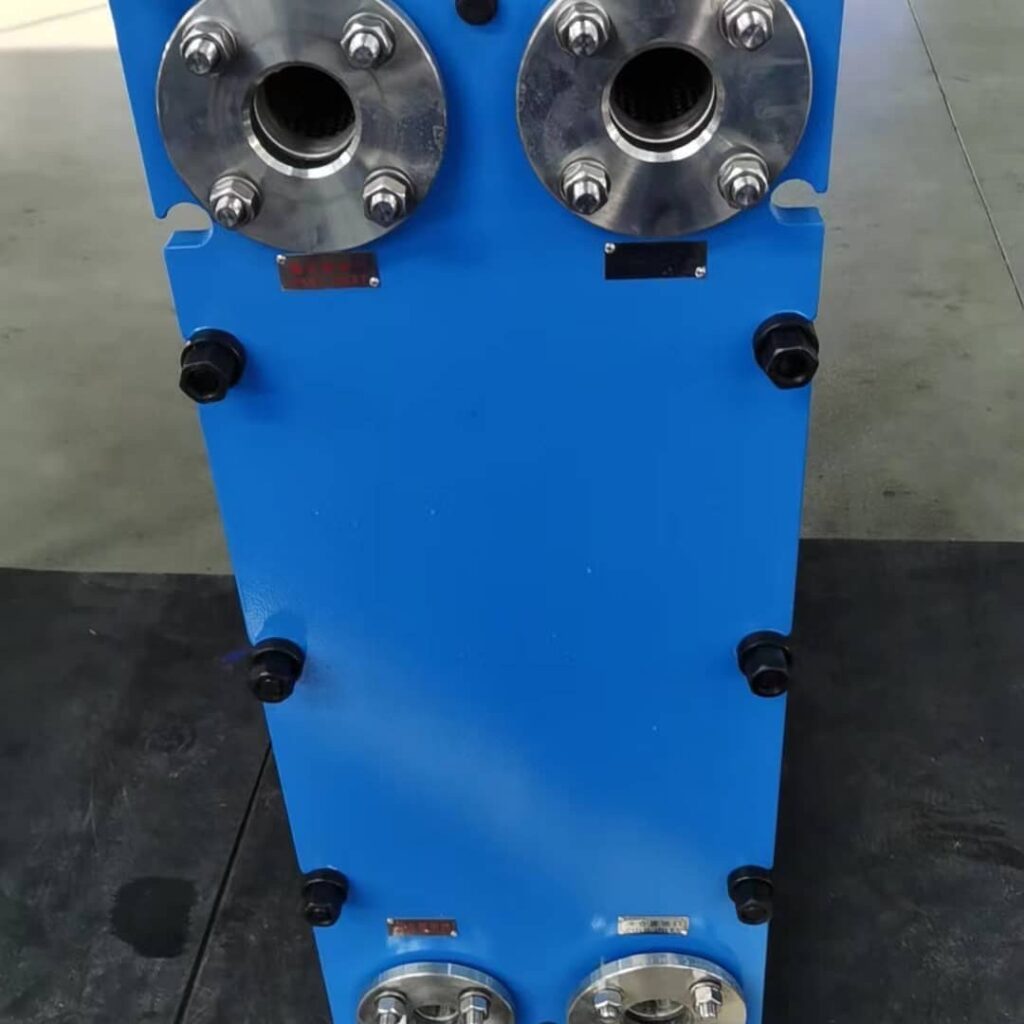

The TSC 7150 from Technosystem is a high‑performance gasketed plate heat exchanger designed for versatility, longevity, and ease of maintenance.
Its corrugated plate design ensures superior heat transfer efficiency, while the gasketed assembly allows quick inspection, cleaning, and the flexibility to expand capacity by adding plates.
Fully built and tested under PED standards, the TSC 7150 is customizable to meet a wide range of industrial and commercial needs.
Technical Specifications TSC 2411:
| Feature | Description |
|---|---|
| Applications | Heating, cooling, steam, food fluids & oils |
| Max flow rate | 933 m³/h (with water) |
| Max number of plates | 389 |
| Chassis | PN6, PN10 (PN16 on request) |
| Frame material | Stainless steel AISI 304L or AISI 316L |
| Plate material | Stainless steel AISI 304 or AISI 316, Titanium, SMO 254 alloy |
| Gasket materials | NBR, EPDM, FKM (FDA approved) |
| Connection materials | Stainless steel ASTM A193 B8 or B8M |
Applications:
- Heating & Cooling – for industrial, HVAC, and process systems
- Steam use – compatible with steam heating operations
- Food & Beverage Processing – safe for food fluids and oils
- Cogeneration – for efficient thermal recovery
- District Heating – high flow capacity for energy distribution
Key Advantages:
- Heating & Cooling – for industrial, HVAC, and process systems
- Steam use – compatible with steam heating operations
- Food & Beverage Processing – safe for food fluids and oils
- Cogeneration – for efficient thermal recovery
- District Heating – high flow capacity for energy distribution
FAQ:
Q: Can the TSC 7150 handle steam?
Yes — it is fully compatible with steam-based heating applications.
Q: Is it safe for food-grade applications?
Absolutely. Plates and gaskets can be chosen for food processing regulations.
Q: Can I increase its capacity later?
Yes — you can expand the number of plates up to 389.
Q: What pressure classes are available?
Standard PN10 and PN16, with PN25 available on request.
Purchase & Pricing:
The TSC 7150 can be ordered with full customization. Pricing depends on:
- Material selection
- Plate count
- Pressure rating
- Configuration and accessories
Contact Vira Trading Group for a tailored quotation.
