Plate Heat Exchanger TSC 2411
Plate Heat Exchanger TSC 2411
Max Flow Rate: 150 m3/h (with water)
Plates Material: Stainless steel AISI 304 – AISI 316
Gaskets: NBR, EPDM, FKM
Energy Recovery: Up to 90%
Product Overview:

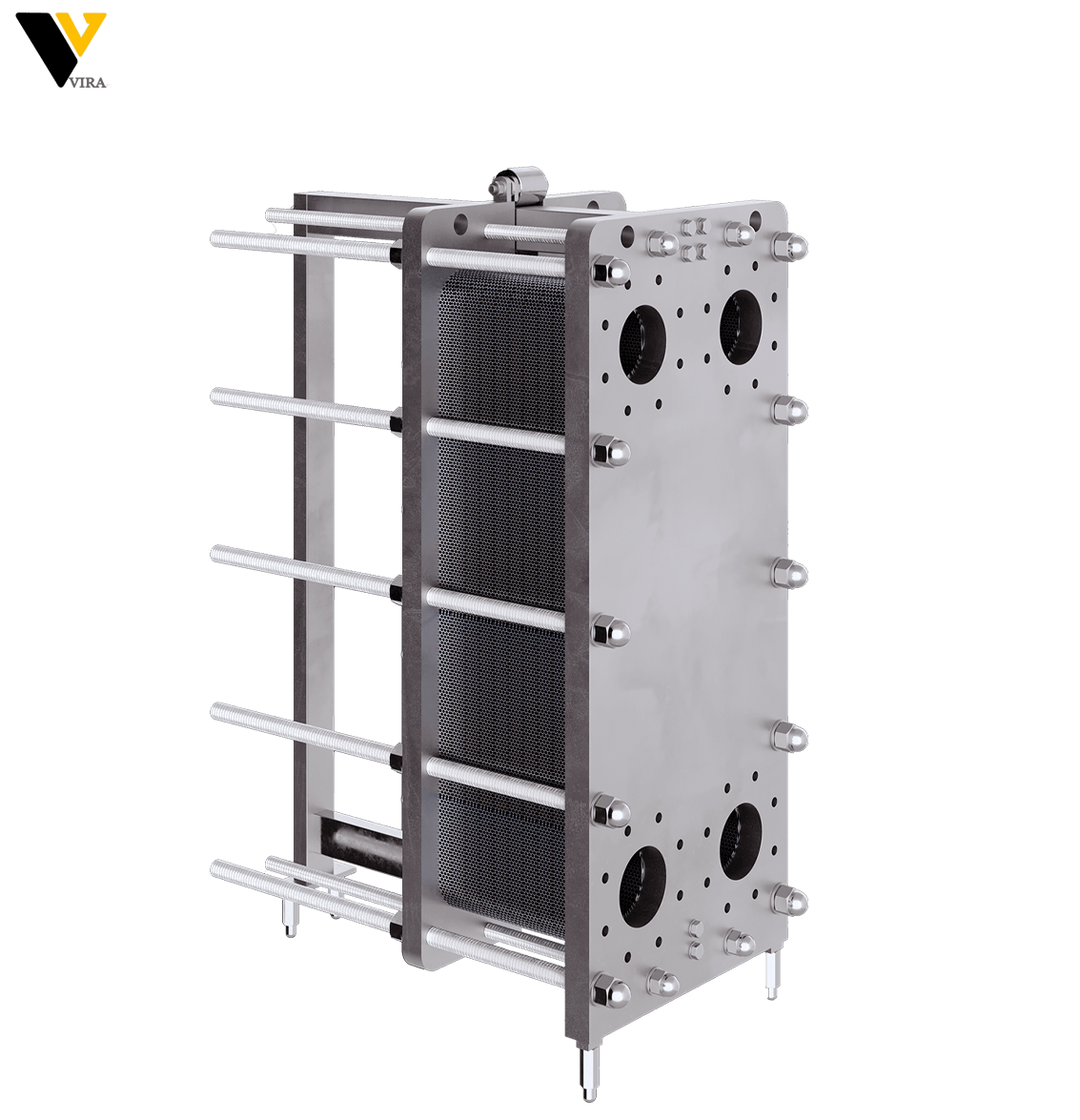

The TSC 2411 Gasketed Plate Heat Exchanger comes with corrugated plates and a stainless steel frame, delivering outstanding hygiene, durability, and efficiency.
Built and tested in compliance with PED standards, the unit is designed for easy opening, inspection, and cleaning, making it ideal for applications that demand frequent maintenance and high sanitation standards especially in the food industry and industrial heating.
Thanks to its modular design, the plate pack can be expanded to increase capacity. From pasteurizing food fluids to steam-based heating, the TSC 2411 offers a reliable, long‑lasting heat transfer solution.
Technical Specifications TSC 2411:
| Feature | Description |
|---|---|
| Applications | Heating, cooling, steam service, food fluids, oils, pasteurisation |
| Max flow rate | 150 m³/h (with water) |
| Max number of plates | 403 |
| Chassis | PN6, PN10 (PN16 on request) |
| Frame material | Stainless steel AISI 304L or AISI 316L |
| Plate material | Stainless steel AISI 304 or AISI 316, Titanium, SMO 254 alloy |
| Gasket materials | NBR, EPDM, FKM (FDA approved) |
| Connection materials | Stainless steel ASTM A193 B8 or B8M |
Frequently Asked Questions:
1. Is this heat exchanger food-safe?
Yes. All wetted parts can be manufactured from food‑grade stainless steel and gaskets are available with FDA approval.
2. Can it be expanded after installation?
Yes, the gasketed plate design allows for adding or removing plates to adjust heat transfer capacity.
3. How easy is it to clean?
The stainless steel frame and easy‑opening bolts allow quick disassembly for full plate inspection and cleaning.
4. Can it handle steam?
Yes, with proper material selection it is suitable for steam service.
Price & Purchase Information:
The price of the TSC 2411 depends on:
- Number of plates
- Gasket and plate material selection
- Operating pressure
For a precise quotation, please share your process requirements with Vira Trading Group.
Exporter Information:
Vira Trading Group supplies and exports the TSC 2411 worldwide, offering full logistics and after‑sales support for industries in food processing, industrial heating, and HVAC systems.
Conclusion:
For applications where hygiene, flexibility, and compact thermal performance are critical, the TSC 2411 Gasketed Plate Heat Exchanger is a perfect choice.
Its stainless‑steel frame, FDA‑approved materials, and expandable design make it a long‑term investment for food and industrial sectors alike.
