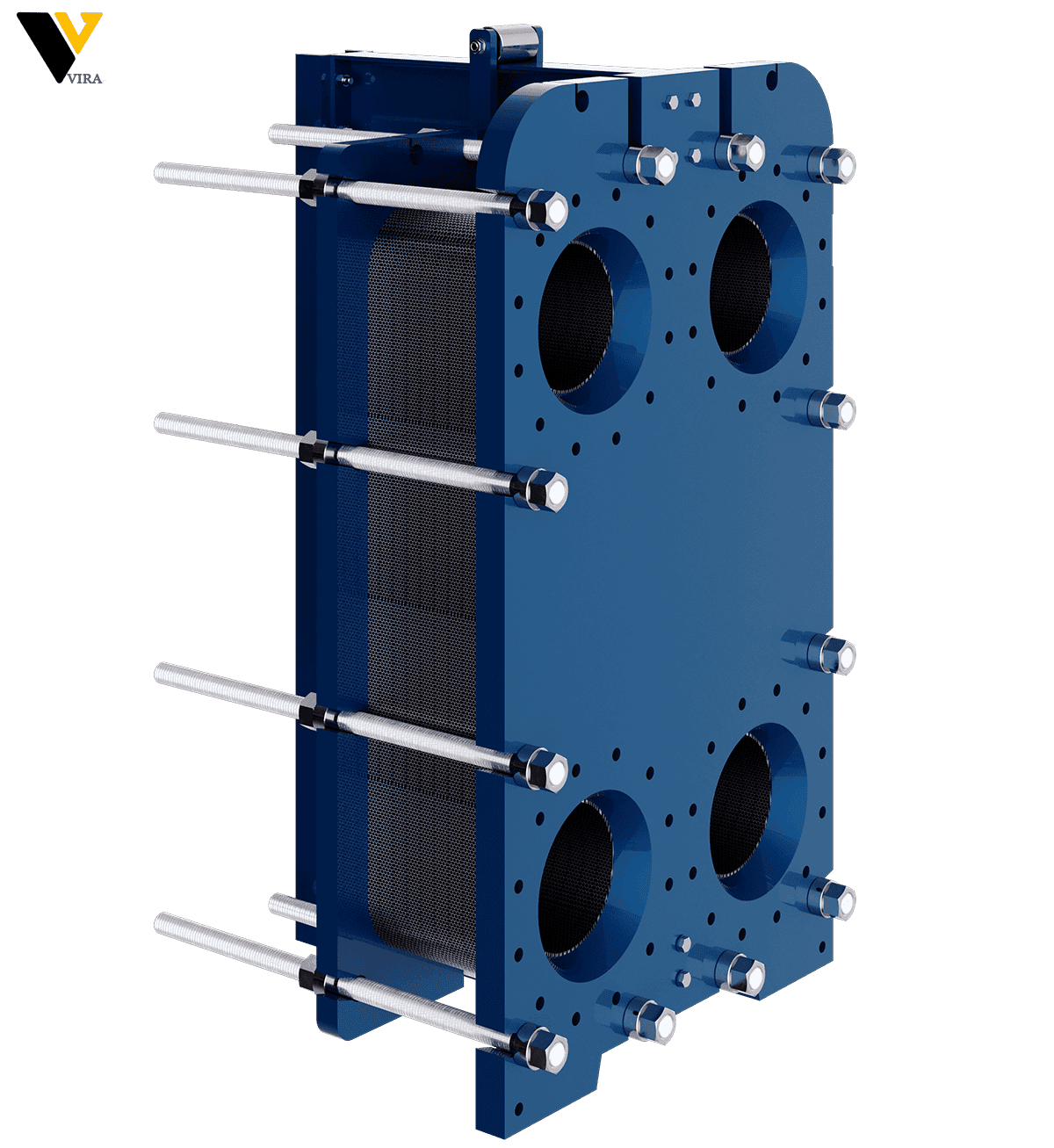

Production Plate Heat Exchanger TSC 4450
Plate Heat Exchanger TSC 4450
Max Flow Rate: 933 m³/h
Plates Material: AISI 304/316, Titanium
Gaskets: NBR, EPDM, FKM
Energy Recovery: Up to 90%
Product Overview:
The TSC 4450 Gasketed Plate Heat Exchanger is a powerful and versatile solution for heat transfer in a wide range of industrial and building applications.
Built and tested according to PED standards, it offers full inspection and plate expansion capability, making it flexible and cost‑effective over its service life.
Thanks to its optimized design, it is particularly well‑suited for processes requiring a high mean temperature difference (DTML).
From food‑grade oils and liquids to steam, this unit delivers reliable performance in sectors such as HVAC, CHP plants, industrial processing, and district heating networks.
Technical Specifications TSC 9950:
| Feature | Description |
|---|---|
| Applications | Heating, cooling, steam service, food fluids and oils |
| Max flow rate | 933 m³/h (with water) |
| Max number of plates | 389 |
| Frame pressure class | PN10, PN16 (PN25 on request) |
| Frame material | Painted carbon steel P355NH / ASTM A516 Gr.70 |
| Plate material | Stainless steel AISI 304 or AISI 316, Titanium, SMO 254 alloy |
| Gasket materials | NBR, EPDM, FKM |
| Connection materials | Galvanized steel ASTM A193 B7, stainless steel ASTM A193 B8 or B8M |
Frequently Asked Questions:
1. Is the unit expandable?
Yes. The gasketed design allows for adding more plates to increase capacity.
2. What types of fluids can it handle?
From water and food‑grade oils to steam and industrial liquids, with the right plate/gasket material selection.
3. Is it safe for food applications?
Absolutely. Stainless steel AISI 316L or titanium plates ensure hygienic and corrosion‑resistant contact with food products.
4. What operating pressure does it support?
Standard PN10 or PN16; PN25 available upon request.
Price & Purchase Information:
The final price depends on plate count, material selection, and operating pressure requirements.
Please share your process data and installation conditions with Vira Trading Group for an official quotation.
Exporter Information:
Vira Trading Group supplies and exports the TSC 4450 worldwide, covering Middle East, Europe, and Central Asia markets with full logistics and delivery support.
Conclusion:
If you need a flexible, durable, high‑efficiency plate heat exchanger, the TSC 4450 is the perfect choice. From district heating to food industry processes, it is built to perform under demanding conditions while offering future scalability.
