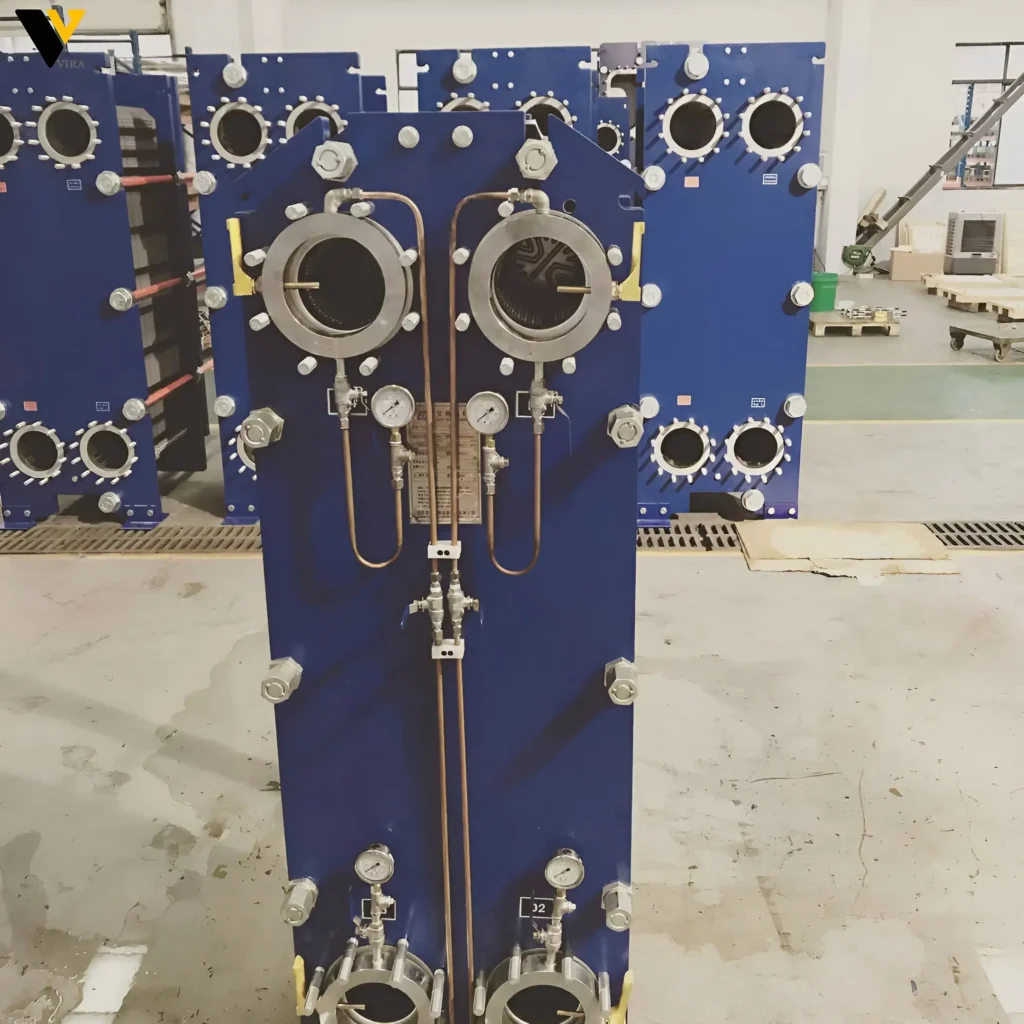

Plate Heat Exchanger TS 501
Max Flow Rate: 15 m³/h (with water)
Plates Material: Stainless steel AISI 304 – AISI 316
Gaskets: NBR, EPDM, FKM
Energy Recovery: Up to 90%
Product Overview:

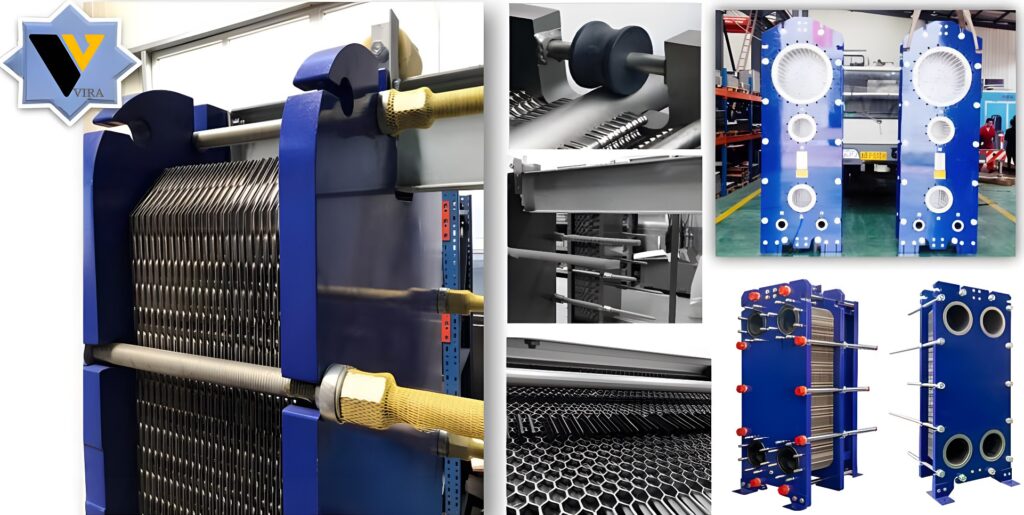

The TS 501 from Technosystem is a smooth plate heat exchanger with integrated turbulators and durable gaskets, designed for easy inspection, cleaning, and capacity expansion.
Built and tested in compliance with PED standards, it offers reliable performance in heating, cooling, and steam applications-including those involving oils.
Its smooth plate design ensures optimized flow patterns and low fouling, while the turbulator feature enhances thermal transfer efficiency.
Technical Specifications TSC 2611:
| Feature | Description |
|---|---|
| Applications | Heating, cooling, steam, oils |
| Max flow rate | 15 m³/h (with water) |
| Max number of plates | 75 |
| Chassis | PN6, PN10 (PN16 on request) |
| Frame material | Stainless steel AISI 304L or AISI 316L |
| Plate material | Stainless steel AISI 304 or AISI 316, Titanium, SMO 254 alloy |
| Gasket materials | NBR, EPDM, FKM (FDA approved) |
| Connection materials | Stainless steel ASTM A193 B8 or B8M |
Applications:
- Heating and Cooling in industrial and HVAC systems
- Steam use for thermal processing
- Oil heating and cooling applications
- District heating systems
Key Advantages:
- Smooth plate design – reduces fouling, improves flow distribution
- Turbulator technology – boosts heat transfer efficiency
- Expandable capacity – up to 75 plates

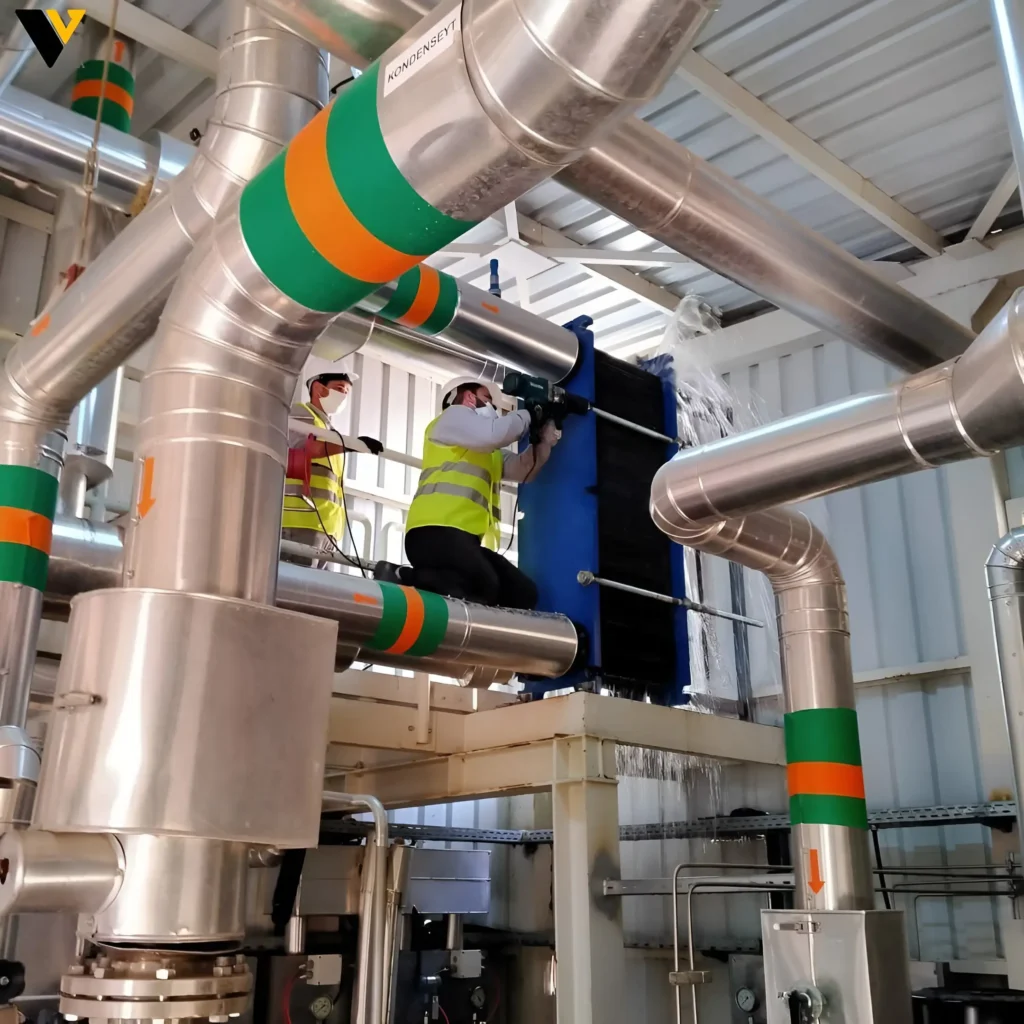

- Easy inspection & maintenance – gasketed for quick access
- Versatile materials – ideal for water, steam, and oils
- Tested to PED standards – compliance and safety assured
FAQ:
Q: Can the TS 501 handle oils?
Yes – it is fully compatible with thermal oil applications for both heating and cooling.
Q: Is it inspectable?
Yes, the gasketed structure allows easy opening for thorough cleaning and routine inspection.
Q: Is it suitable for high‑pressure systems?
Yes – available in PN16 and PN25 pressure ratings.
Q: What plate materials are available?
AISI 304, AISI 316, Titanium, and Alloy SMO 254.
Purchase & Pricing:
The TS 501 is available in multiple configurations, with customization for:
- Plate count
- Materials
- Pressure ratings
- Connection type
Pricing is calculated based on your specifications.
Contact Vira Trading Group for a precise quote and delivery lead time.
